Detailed Information about Flexline Laminate for Laser Engraving

Flexline Laminate has been developed specifically for laser engraving and cutting, offering exceptional engraving quality with fast production time. The material features an ultra-thin hot-stamped foil surface bonded to a modified acrylic base, allowing the laser to produce sharp text, detailed logos, and intricate graphics with very little residue.

The reduced engraving depth means lower laser power is required to remove the surface layer, resulting in cleaner edges, faster processing, and less clean-up after lasering.

Browse our full range of Laser Engraving Laminate Sheets and find the right size, thickness, and colour combination for your project. We provide fast UK shipping and expert support for all your engraving needs.

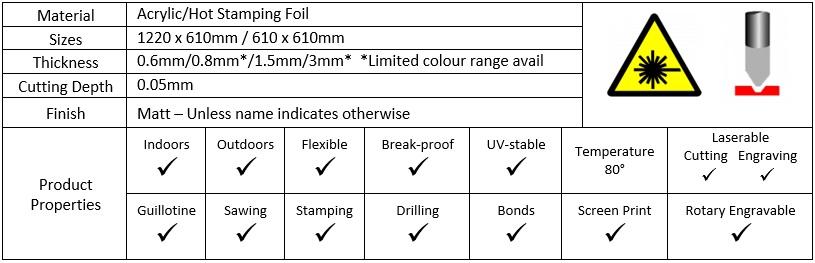

Material Specification Table

Key Features:

• Ultra-Thin Foiled Surface – Produces crisp, high-definition engraving with excellent edge quality and fine detail.
• Laser Machine Compatible – Suitable for cutting and engraving using CO₂ and other laser engraving machines.
• Minimal Clean-Up Required – The thin foil layer engraves cleanly, reducing residue and finishing time.
• Modified Acrylic Core – Strong, durable construction suitable for a wide range of professional applications.
• Available in 0.6mm & 1.5mm Thicknesses – Choose the thickness that best suits your project.
• Wide Choice of Colours & Finishes – Available in matt, gloss, brushed, metallic and fluorescent finishes to suit every design.
• Optional Self-Adhesive or Magnetic Backing – Simplifies installation onto equipment, panels, doors and displays.
• Solvent Weld Compatible – Successfully bonds using solvent welding methods where permanent assembly is required.
• Halogen-Free, Silicone-Free & Asbestos-Free – A safer material choice for environments where fire performance is an important consideration.
• Cut to Size Available – Reduce waste and save machining time by ordering sheets cut to your preferred dimensions.

Applications:

Flexline Laminate is ideal for producing:

• Indoor signage
• Safety signs
• Industrial labels
• Equipment identification plates
• Name badges
• Door signs
• Desk nameplates
• Trophy plates
• Memorial and commemorative plaques
• Coffin plates
• Machine labels
• Asset tags
• Control panels
• Point of sale displays

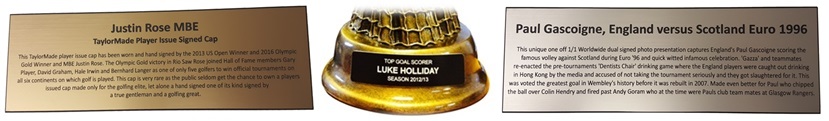

Here are some examples of finished products made using our in-house Universal VLS6.60, 50-watt CO₂ laser machine:

Frequently Asked Questions

What machines can cut and engrave Flexline laminate?

Flexline laminate is best cut and engraved using CO2 lasers or Diode lasers. Because it features a micron-thin foil surface over a modified acrylic base, lasers burn through the top foil cleanly to reveal the contrasting colour beneath, while leaving a smooth, sealed edge.

For rotary or CNC machine users, we would recommend using our Micro (ABS) Engraving Laminate as a similar alternative material specifically designed for rotary engraving and cutting. However, if you need a material suitable for outdoor applications, Flexline can be rotary engraved.

Is it suitable for outdoor use?

Our standard colours are suitable for use both indoors and outdoors. Metallic foil finishes such as Silver and Gold are recommended for indoor use only. If you require a metallic engraving material suitable for outdoor environments, our External Laminate range is the better choice.

How do you clean smoke residue off the material?

Because the foiled layer requires less laser power to cut through, it produces minimal cleanup. However, any residual smoke or discoloration can be removed by lightly wiping the surface with a specialist Laser Cleaner or standard furniture polish.

Can I see a demonstration on how to use Flexline laminate material?

- Watch our 'how to use' video on YouTube for a demonstration of cutting and engraving Flexline laminate using a co2 laser machine.
